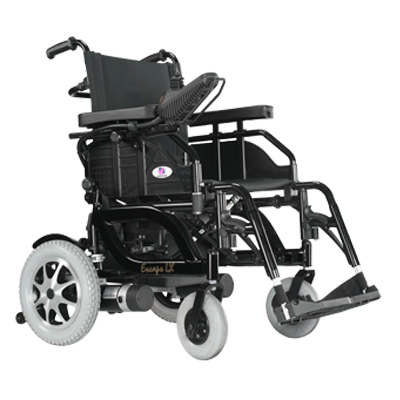

Escape - LX - HP8
| ITEM | SPECIFICATION |
| WEIGHT CAPACITY | 300lbs (135kgs) |
| DRIVE WHEEL | 12.5″ x 2.375″ (320mm x 60mm) |
| FRONT CASTER(WHEEL) | 8″ x 2″ (200mm x 50mm) |
| REAR CASTER(ANTI-TIPPER) | 1.375″ x 0.625″ (35mm x17mm) |
| MAX SPEED | 3.8MPH (6KPH) |
| BATTERY SPECIFICATIONS | 12V 36Ah x 2pcs |
| BATTERY RANGE | up to 20miles (30km)* |
| CHARGER TYPE | 5 Amp Off Board |
| CONTROLLER TYPE | VSI 50Amp |
| MOTOR TYPE | 200W x 2pcs |
| LENGTH | 42.5″ (1085mm) |
| WIDE | 25″ (640mm) |
| WEIGHT:W/BATTERY | 145lbs (66kgs) |
| SUSPENSION | None |
| TURNING RADIUS | 34″ (865mm) |
* Depending on the use, terrain and driving conditions, the batteries will provide a range of up to 20 miles of travel. However, even if the power chair is not in use, we recommend that the batteries be charged periodically.
PURCHASE OR DOWNLOAD USER MANUAL - HP8
